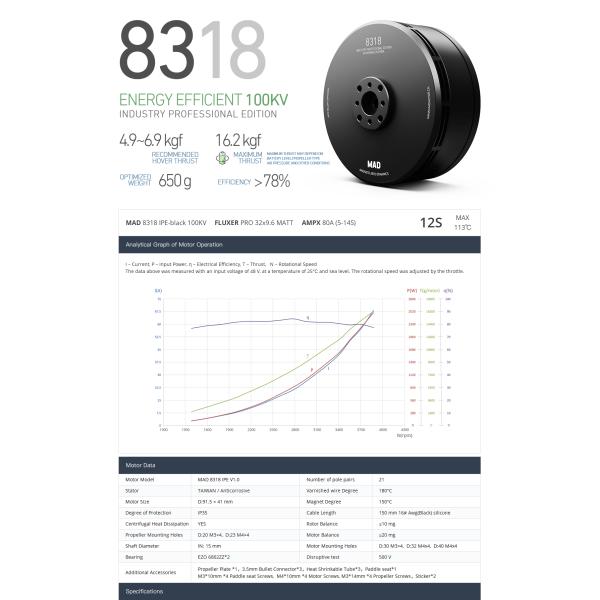

MAD 8318 IPE Brushless DC Motor
Technical Specifications
| Attribute |
Value |
| Motor Model |
8318 IPE V1.0Japan |
| Motor Size |
D:91.5 x 38 mm |
| Propeller Mounting Holes |
D:20 M3x4, D:23 M4x4 |
| Shaft Diameter |
IN: 15 mm |
| Bearing |
EZ0 6802ZZ*2 |
| Number of pole pairs |
21 |
| Cable Length |
150 mm (extended Enameled wires) |
| Motor Mounting Holes |
D:30 M3x4, D:32 M4x4, D:40 M4x4 |
| Disruptive test |
500 V |
Product Overview
The MAD 8318 IPE Brushless DC Motor (100KV/120KV/260KV) is engineered for demanding agricultural applications. Designed for heavy lifting in harsh environments, this motor delivers exceptional efficiency and load capacity while maintaining IP35-rated water and dust resistance.
With a maximum thrust of 17.5kg and compatibility with 28-32in propellers, this motor offers reliable performance for agricultural drones. Its robust construction ensures long service life, making it a cost-effective solution for professional applications.
Warranty & Support
- 1 Year Manufacturer Warranty included
- 14-day return policy for unsatisfied customers (contact required before return)
- Free replacement for defective items within 3 months
- Post-warranty support available (shipping fees apply)
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping apply.
Q3: What is the delivery time?
A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (quantity dependent).
Q4: What is the minimum order quantity?
A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.
Q5: What are your payment terms?
A5: L/C or 100% TT payment accepted.
Q6: Can you reduce the shipping cost?
A6: We always select the most economical shipping option. Customers may arrange their own shipping.
Q7: Return policy.
A7: Returns must be initiated within 7 days of receipt. Items must be in original condition with shipping at customer's expense.
